ESP32-S2, HMI - LCD + GUI 개발 키트

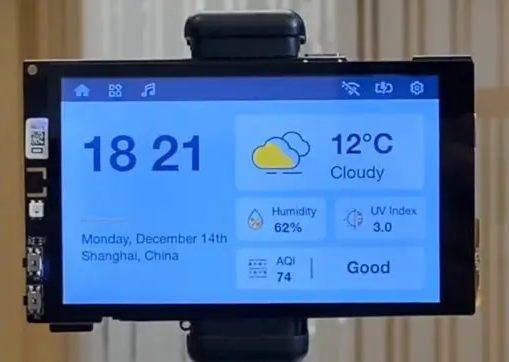

ESP32-S2-HMI-DevKit-1 는 4.3인치 터치 스크린, 1950mAh배터리를 탑재한 개발키트로 ESP32-S2 를 메인 MCU로 사용한다. RGB LCD interface를 지원하고, 카메라, 오디오 기능을 지원한다.



• 메인 모듈 : ESP32-S2-WROVER
• ESP32-S2 Xtensa single-core 32-bit LX7 microprocessor, up to 240 MHz
• 128 KB ROM, 320 KB SRAM
• WiFi 4 connectivity, 4MB flash, 2MB PSRAM
• Storage – Micro SD card slot
• Display – 4.3-inch display with 800×480 resolution, I2C capacitive touch panel
• Audio – Audio amplifier, built-in microphone, speaker connector
• USB – 1x USB-C OTG (DFU/CDC) port, 1x USB-C debug port
• Expansion – SPI header, TWAI (2-wire automotive interface)/CAN header, I2C header, UART/Prog header
• Sensors – 3-axis accelerometer, 3-axis gyroscope, ambient light sensor, temperature and humidity sensor
• Misc – Programmable RGB LED lights, wake up and reset buttons, IR transmitter
• Power Supply – 5V and 3.3V power headers
• Battery – 1,950 mAh Li-ion battery



github.com/espressif/esp-dev-kits/tree/master/esp32-s2-hmi-devkit-1

github.com/espressif/esp-dev-kits/tree/master/esp32-s2-hmi-devkit-1

espressif/esp-dev-kits
