ESP32 RF test - for certification and perfomance

ESP32 is a Wifi + Bluetooth combo IC.

This is a manual for RF testing by using Espressif RF tool.

It can use for FCC, CE, IC, KC, MIC and RF perfomance test such as RF Tx out, EVM, RSSI.

It is very simple steps and you can refer to below video, too.



ESP32 RF Test

Step1 : Download test program

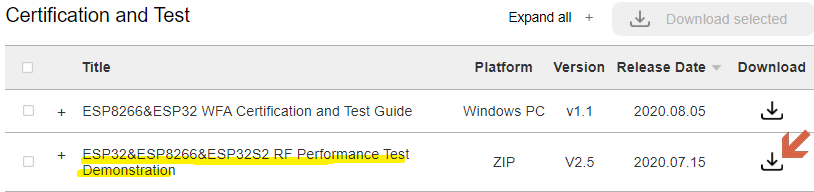

www.espressif.com/en/support/download/other-tools



Step2 : Prepare your DUT

This is a exactly same as your development connection.

If you can download Firmware and See debug message from UART0, it is OK.

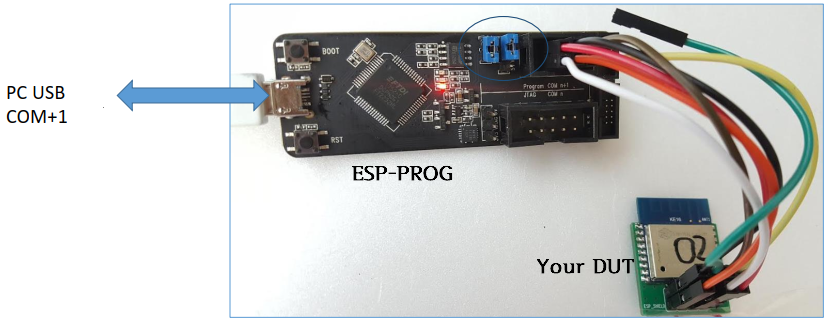

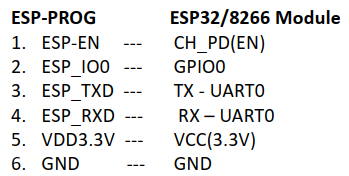

You have to connect below pins to USB-UART conversion board or ESP-PROG.







Step3 : Download RF test firmware



firmware name : ESP32_RF_TEST_V160_40M_20200714.bin

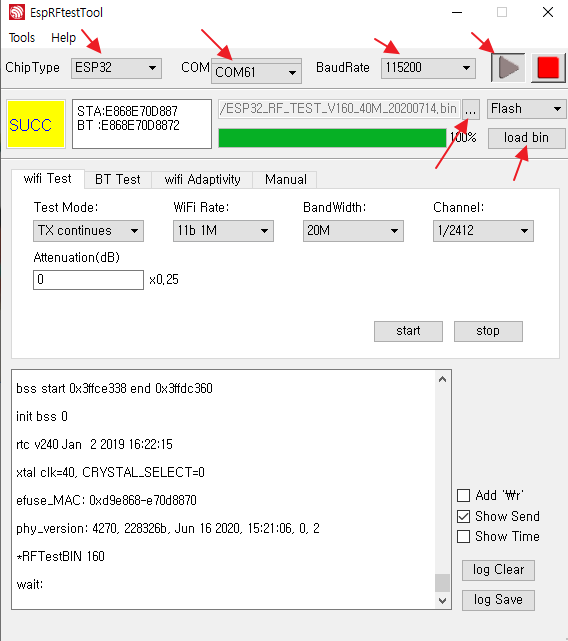

Step4 : Run command



You must stop when you need to change command



WiFi test mode

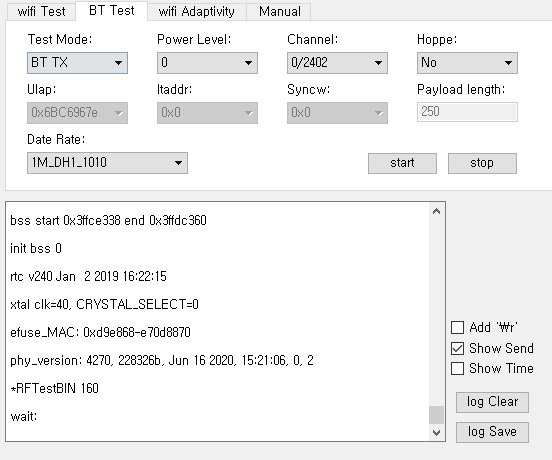

Bluetooth test mode

Step5. Adaptivity Test

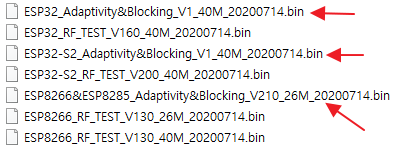

you need to change firmware for Adaptivity test as below.

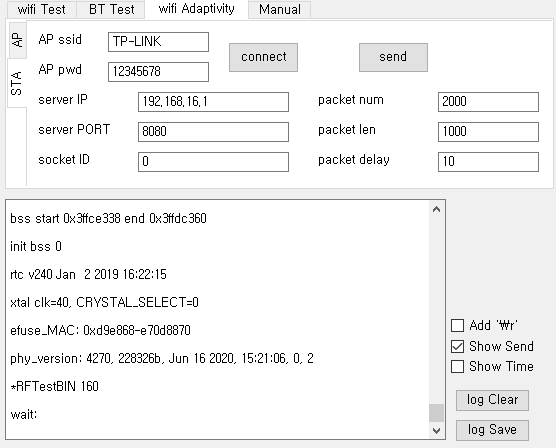

Adaptivity test mode
