ESP32 모듈용 소켓 ( ESP32-DEVKITS 제품 )

ESPRESSIF|2024. 3. 28. 15:28

ESP32-DEVKITS는 모듈 단품을 핀으로 연결하여 프로그램을 할 수 있는 간이 지그입니다.

장착하는 영상은 아래 참고 바랍니다.

https://blog.naver.com/devicein/222327512763



ESP32 모듈용 소켓 (Socket ) 사용방법

소켓 메뉴얼 : https://docs.espressif.com/projects/esp-idf/en/latest/esp32/hw-reference/esp32/user-gu...

blog.naver.com



메뉴얼:

https://docs.espressif.com/projects/esp-idf/en/stable/esp32/hw-reference/esp32/user-guide-devkits-r-v1.1.html



ESP32-DevKitS(-R) - ESP32 - — ESP-IDF Programming Guide v5.2.1 documentation

This section describes how to get started with ESP32-DevKitS(-R). It begins with a few introductory sections about ESP32-DevKitS(-R), then Section How to Flash a Board provides instructions on how to mount a module onto ESP32-DevKitS(-R), get it ready, and

docs.espressif.com



제품 별로 호환 모듈은 아래와 같습니다.

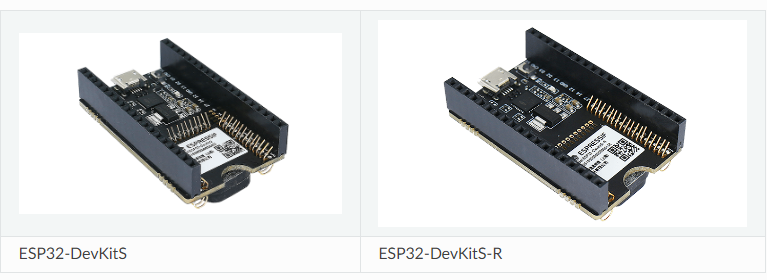

  • ESP32-DevKitS:  아래 모듈과 호환
    • ESP32-WROOM-32
    • ESP32-WROOM-32D
    • ESP32-WROOM-32U
    • ESP32-SOLO-1
    • ESP32-WROOM-32E
    • ESP32-WROOM-32UE
  • ESP32-DevKitS-R: 아래 모듈과 호환
    • ESP32-WROVER (PCB & IPEX)
    • ESP32-WROVER-B (PCB & IPEX)
    • ESP32-WROVER-E
    • ESP32-WROVER-IE

**  ESP8266-DEVKITS : 아래 모듈과 호환

ESP-WROOM-02/02D/02U

ESP-C3-WROOM-02/02U   ==> GPIO8, GPIO9번 번호가 다릅니다. GPIO8은 강제로 Pull up해야 합니다.

자료 : https://www.espressif.com/sites/default/files/documentation/ESP8266-DevKitS_user_guide__EN.pdf



구매방법 :

https://www.digikey.kr/en/products/detail/espressif-systems/esp32-devkits/11613137

https://www.digikey.kr/en/products/detail/espressif-systems/esp32-devkits-r/11613124

https://www.digikey.kr/en/products/detail/espressif-systems/esp8266-devkits/11613127
